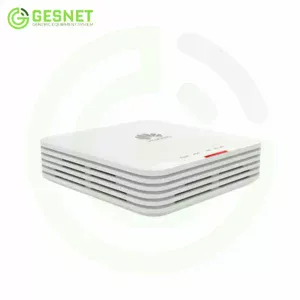

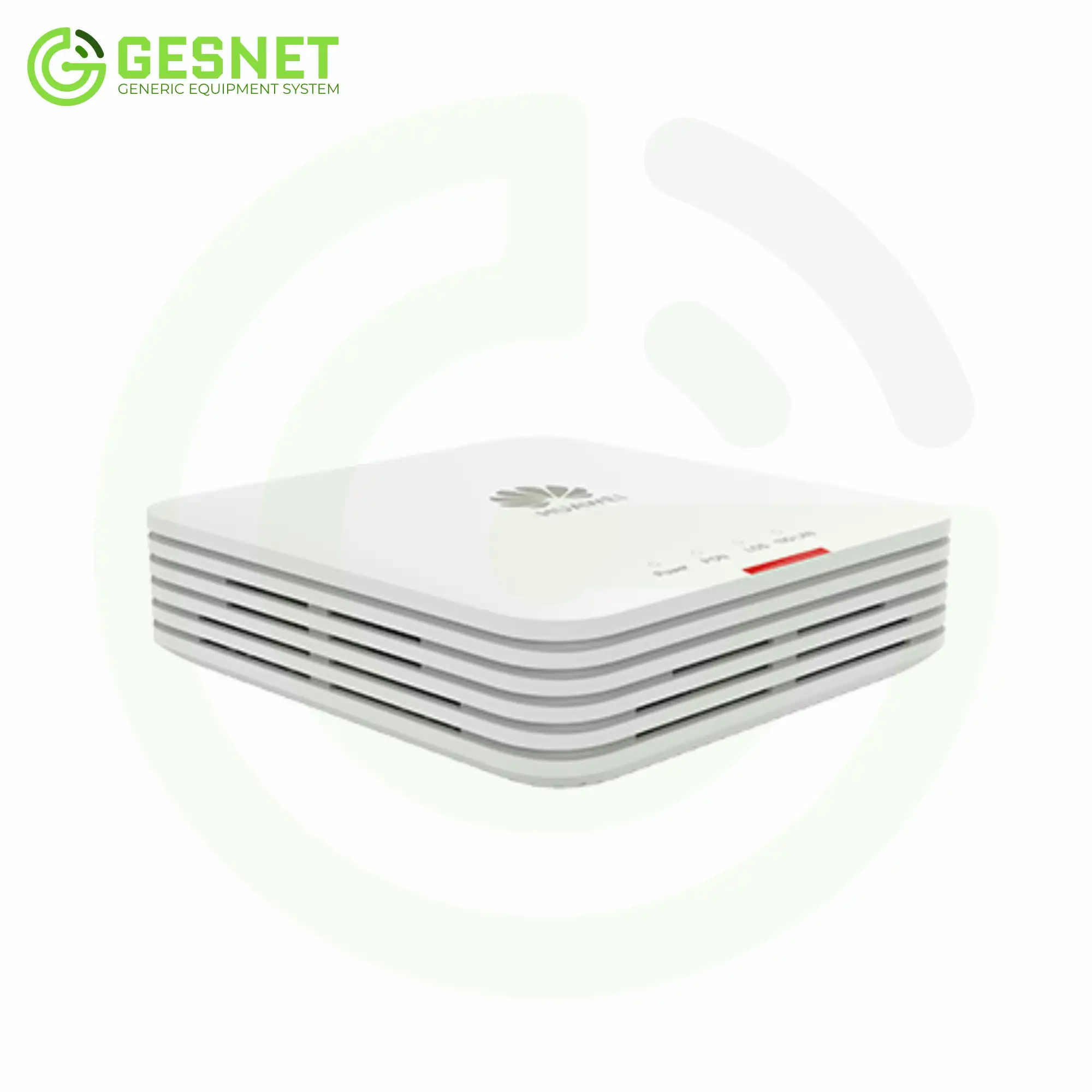

Huawei OptiXstar HN8010Ts-20
The Huawei OptiXstar HN8010Ts-20 is an XGS-PON bridging-type ONT in the Huawei all-optical access solution. It uses the XGS-PON technology to implement ultra-broadband access for users.
| Type | Routing |
| Dimensions (H x W x D) | 32 x 105 x 110 mm |
| Weight | <350 g |
| Operating humidity | 5% a 95% RH (non-condensing)) |
| Operating temperature | 0º to 40º C |
| System power supply | 11-14 V DC, 0.5 A. |
| Input power adapter | 100-240 V AC 50/60 Hz |
| Static power consumption | 5.1 W |
| Maximum power consumption | 6 W |
| NNI | XGS-PON |
| UNI | 1* 10GE |
| Optical connector | SC/APC |
| Indicators | Power/PON/LOS/10G LAN |
